Applications :

• The cables are designed for railway signalling systems. The cables are suitable for use in d.c. circuits where the nominal voltage to earth does not exceed 1100 volts and installation in ducts.

Standards :

• NR/PS/SIG/00005(formerly RT/E/PS/00005)

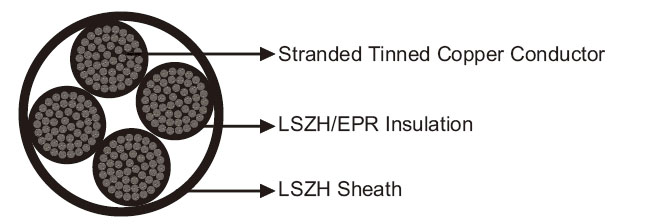

Construction :

• Conductors : Tinned stranded copper, class 5 according to IEC 60228 & BS6360.
• Insulation : LSZH or EPR Type GP4 to BS7655.
• Outer Sheath : LSZH.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm2	2.5
  Maximum DC Conductor Resistance	Ω/km	8.21
  Voltage Rating	KV	0.65/1.1
  Nominal Insulation Thickness	mm	1.05

Mechanical and Thermal Properties :

• Minimum Bending Radius : 6xOD (static); 15xOD (dynamic).
• Operating Temperature : -25°C to +85°C (during operation) ; -10°C to +85°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm2	No. & Nominal Diameter of Strands No/mm	Nominal Sheath Thickness mm	Overall Diameter Min/Max mm	Nominal Weight kg/km
Type E1
RS/E1-3GH-1G2.5	1×2.5	50/0.25	3.8	11.2/14.0	200
Type E2
RS/E2-3GH-2G2.5	2×2.5	50/0.25	3.8	14.9/18.8	380
RS/E2-3GH-4G2.5	4×2.5	50/0.25	3.8	16.4/20.9	470
RS/E2-3GH-7G2.5	7×2.5	50/0.25	3.8	18.7/23.7	625
RS/E2-3GH-10G2.5	10×2.5	50/0.25	3.8	22.5/28.6	940
RS/E2-3GH-12G2.5	12×2.5	50/0.25	3.8	23.2/29.3	980
RS/E2-3GH-16G2.5	16×2.5	50/0.25	3.8	25.3/32.0	1200
RS/E2-3GH-1P2.5S	1×2×2.5	50/0.25	3.8	15.0/20.0	341

      Routine test voltage: 2.5kV for 5 minutes.





Impact Resistant	Highly Flexible	Oil Resistant	Weather Resistant	Rated Voltage	Laid In Ducts	Low Toxicity



Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
